How to drop and share a waypoint.

Mark the truck, camp or water, share it with your group, and let an arrow point you back to it.Example screens from a demo group in Yosemite Valley. The orange ring shows what to tap. Tap a screen to see it larger.

01

Drop a waypoint

  1. 1

    Open the map tools

    On the map, move it so the spot is in the middle, tap the tools button, then Waypoint here.

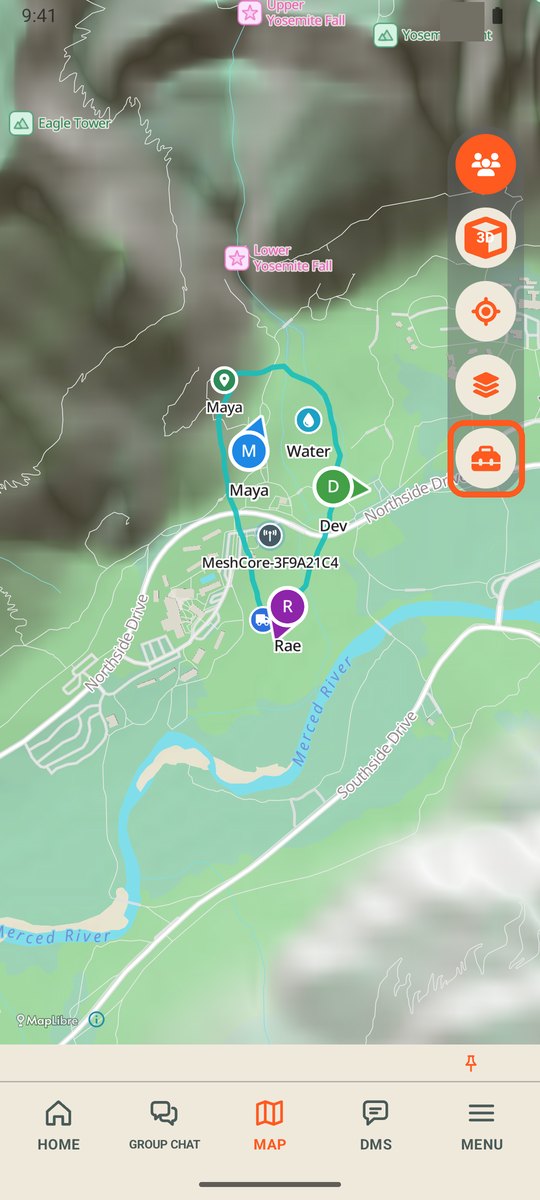

    Map with the map tools button circled
    Map tools

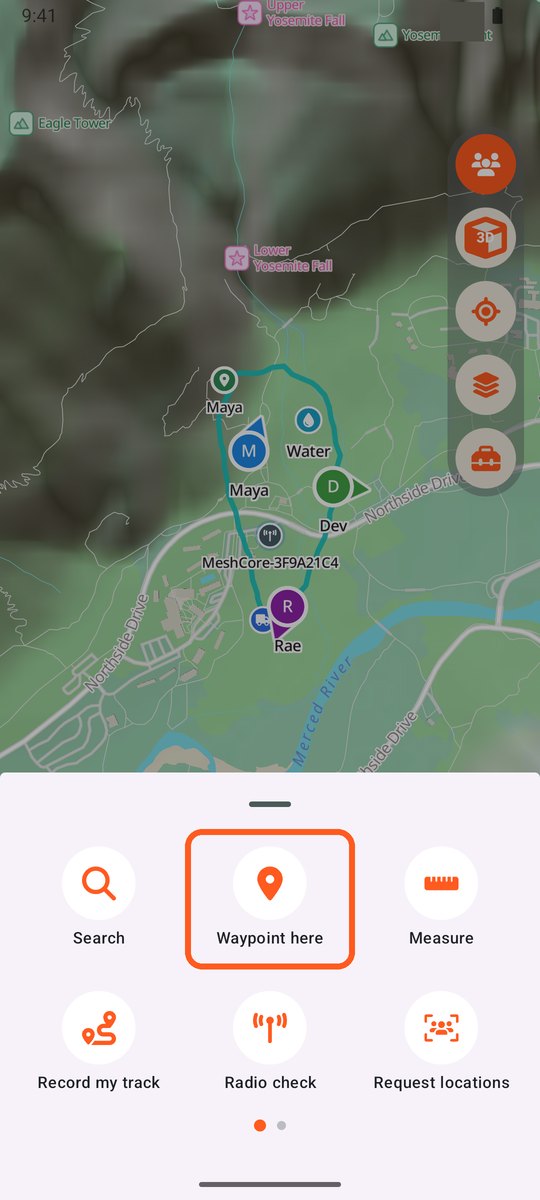

    Map tools with Waypoint here circled
    Waypoint here
  2. 2

    Name it and save

    Give it a name and pick an icon: Truck, Trailer, Camp, Water, Danger or Pin. Tap the check to save it for the group, or the share button to also post it in the chat.

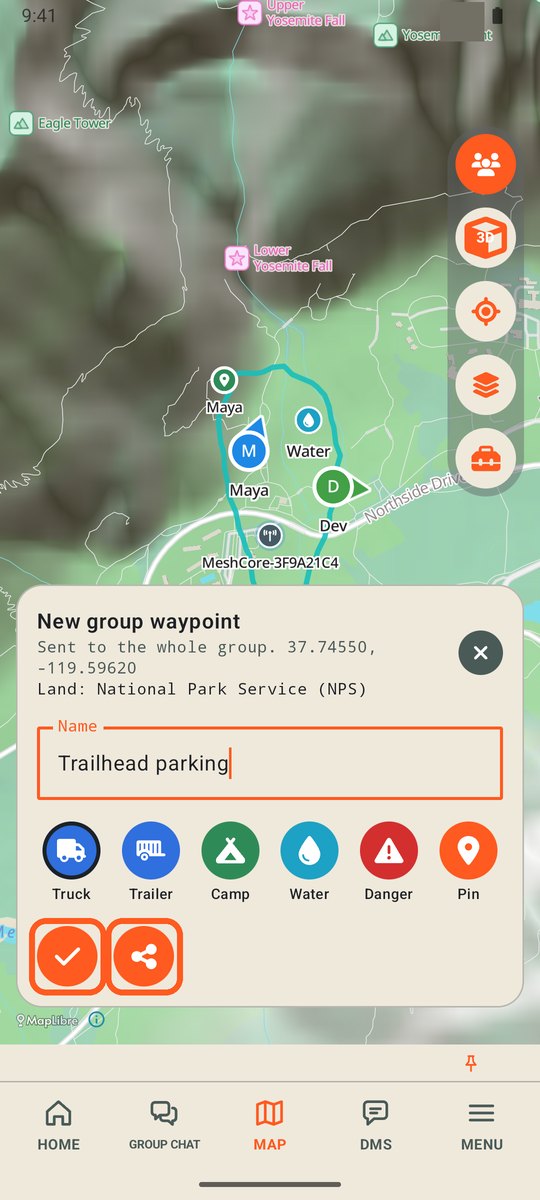

    New group waypoint named Trailhead parking with the two save buttons circled
    Save, or save and share

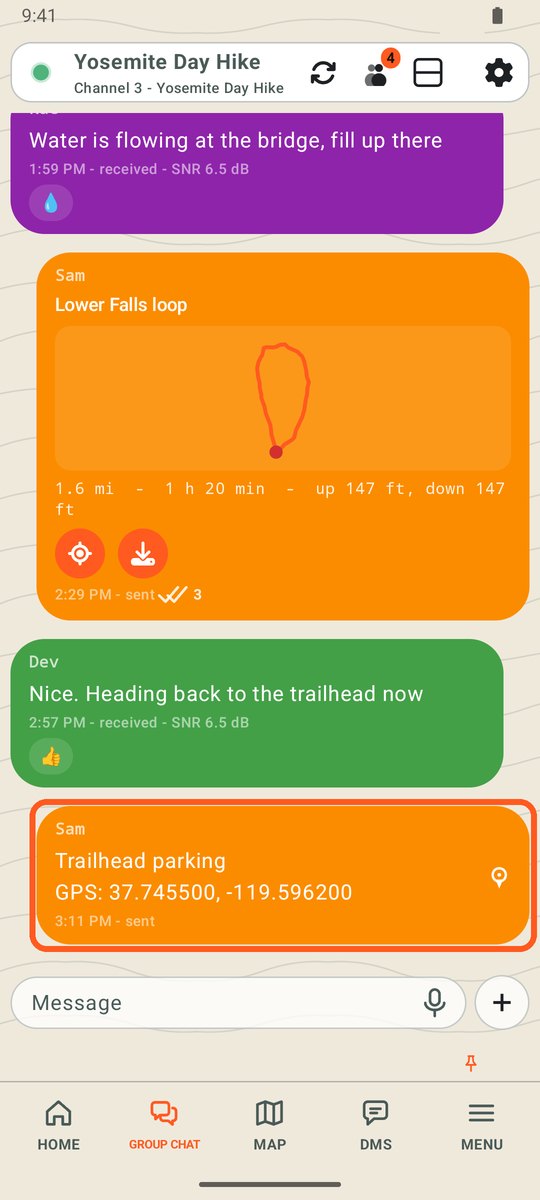

    The waypoint shared in the group chat, circled
    Shared in the chat
02

Get back to it

  1. 1

    Tap Go to

    Tap the waypoint on the map, then the green Go to arrow. You can do the same with a person in your group.

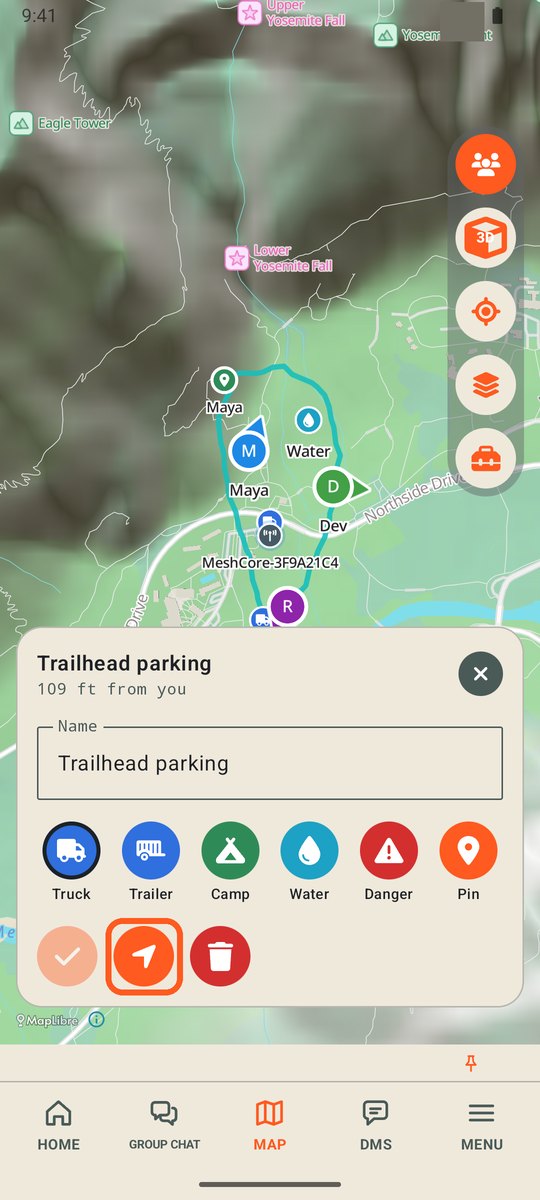

    A waypoint's details with the Go to button circled
    Go to
  2. 2

    Follow the arrow

    A banner at the top shows an arrow pointing the way and how far it is. It uses the phone's compass, so hold the phone flat. Tap the X to stop.

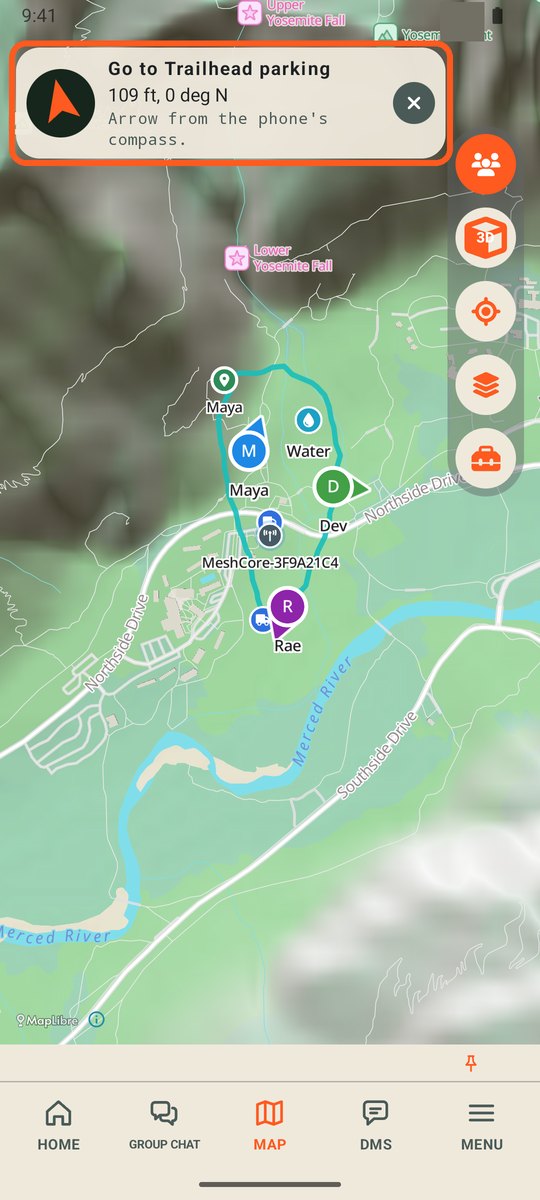

    Go to banner with an arrow and the distance, circled
    Follow the arrow
03

Good to know

  • Group waypoints reach everyone in the group over the radio, so they show on every phone's map.
  • Just for you? Switch the map to your personal map (the button at the top right) and waypoints you add there stay on your phone.
